RolaTube - 2" Lightweight Tripod Systems

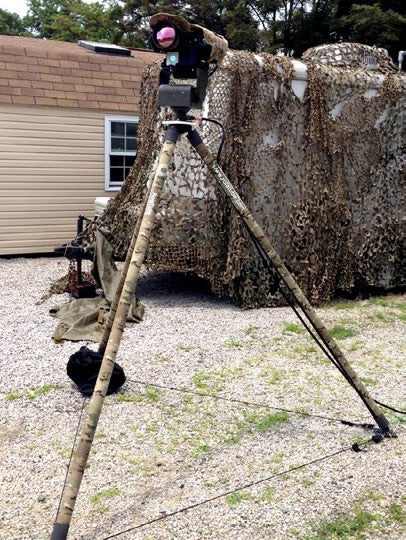

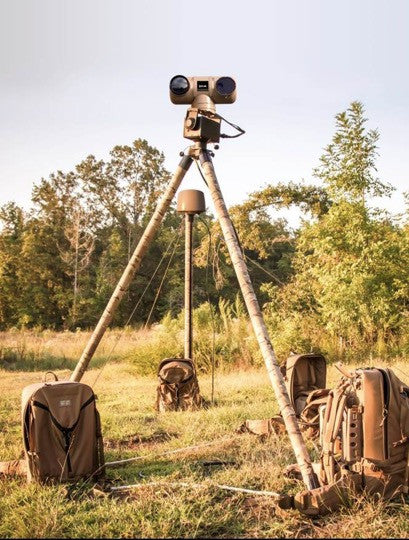

Designed for heavier payloads and those that require greater stability, these tripods are light and small enough to be carried by dismounted forces as well as minimizing the volume required for vehicles carriage. As with all Rolatubproducts, the systems are designed to minimize the size and weight of package carried and preserves the ultra-lightweighadvantage of composite masts whilst avoiding their fragility.

Quick and simple to deploy, it may be used either on uneven ground or in low undergrowth. Unlike metal or carbon composite masts, the thermal signature of BRC tripods is minimal.

The tripods are based opatented Rolatube technology. Formed from custom manufactured composite materials, the tripod legs unroll in thmanner of a carpenters tape measure but, uniquely, is stable in either the coiled or extended form.

Rolatube tripods are:

  • Reliable - No moving parts or joints to fail
  • Stable - able to be used on uneven ground or in strong wind conditions
  • Lightweight - Composite structure offers exceptional strength to weight.
  • Rugged - Thermoplastic composite is highly resistant to impact. Even after significant damage it will retain most of its structural strength
  • Proven - In operational use by UK and NATO forces.
  • Compact Whole system fits to bag size of 250mm x 180mm

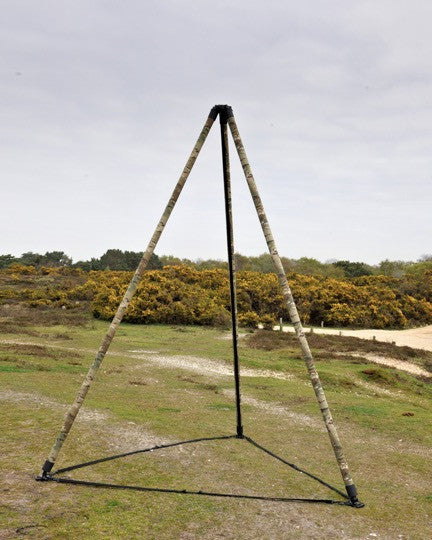

Tripod Length Options:

  • 2" x 1m Tripod System
  • 2" x 2m Tripod System
  • 2" x 3m Tripod System

Maximum Loads:

  • Tripod System 1m 2” - Max top load 30kg
  • Tripod System 2m 2” - Max top load 20kg
  • Tripod System 3m 2” - Max top load 10kg

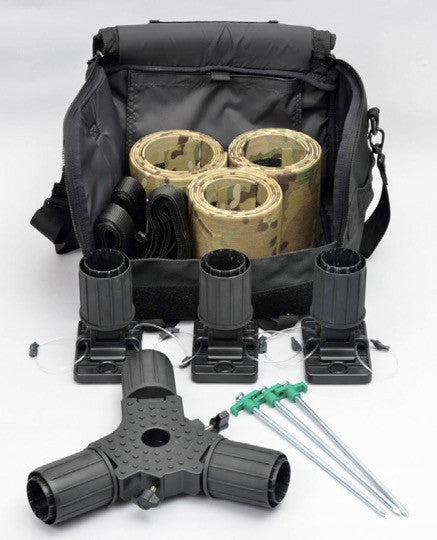

    3" Single Mast System Contents:

    Consists of all parts required for field deployment:

    • 3 x 2" diameter rolatubes with 500 denier Cordura covering of Black, Green or more specialised cloths on request.
    • Tripod Head Mount with Leg Locking Screw and Spigot Locking Screw
    • Leg Locking Screw
    • Spigot (top load) Locking Screw
    • 3 x pegs. Either pin or V shaped pegs can be supplied
    • 1 x carry bag

    2" Tripod System Options:

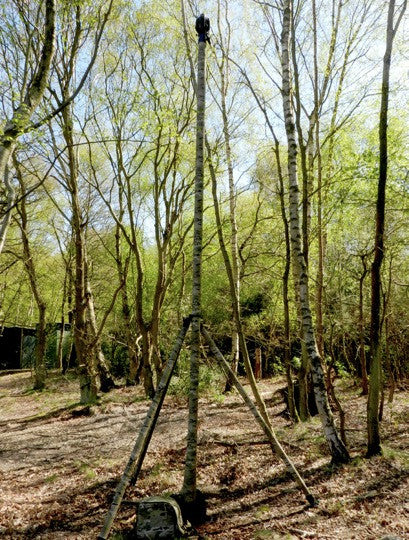

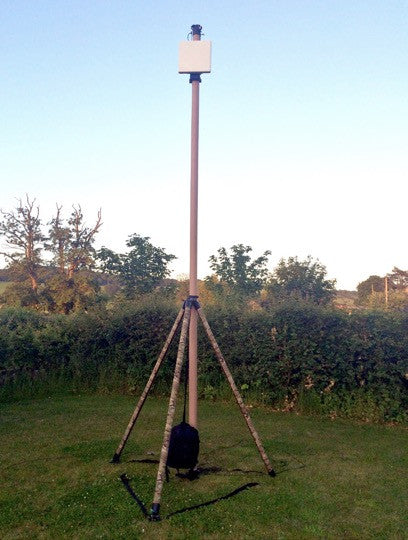

    • Optional Adaptor for 3” diameter RolaTube Mast to enable Tripod to be Used to Support a higher Comms Mast without use of guys
    • Leg Ties (adjustable)
    • RolaCage

      Options

      Spearpoint are happy to quote for any specific customer requirements, including variations in cover materials, pegs and spigot hole sizes to fit any antenna. Other leg lengths and head weight capacity available on request.
